RAKwireless Mini Meshtastic Starter Kit

The Meshtastic Starter Kit Mini from RAKwireless.

Product Features

• WisBlock RAK19003 Base board and the RAK4631 WisBlock Core module, already flashed with the Meshtastic firmware.

• Easy Plug'n'Play slots for WisBlock Core MCU, small WisBlock Sensor, WisBlock Extra, small WisBlock Storage and WisBlock Power modules

• Small form factor

• Supports 3 different power supply sources

• Optimized for low power consumption applications

• I2C, UART, GPIO's an analog input accessible with solder contacts

• 2 user-definable LED's

• Reset button

• USB Type C debug port

• 1 slot for WisBlock Core MCU

• 2 slots for modules with 24pin WisConnector

Package Inclusion

• 1pc WisBlock Base (RAK19003)
• 1pc WisBlock Core (RAK4631) contains RAK4630 already soldered
• 1pc IPEX LoRa PCB Antenna
• 1pc IPEX BLE PCB Antenna
• small dipole antenna
• IPEX to SMA connector for dipole antenna
• Assembly Screws
• USB Type C to Type A Cable
• US915 915 MHz version/AU915 compatible also- boards can be used in EU but will require a separate 868 Mhz antenna

Meshtastic is an off-grid messaging system using inexpensive hardware to create your personal mesh. Radios forward messages to the next node to distribute them over the network. Communicate kilometers/miles between nodes. Internet-connected relay nodes enable the conversation to move online too.

Documentation & Support

• Meshtastic Starter Kit & Mini Starter Kit (RAK4631 Core) - Rokland New User Guide & Support Page
• Rokland Support for RAKwireless Devices
• Sunnyway OEM Gluestick Antenna Datasheet
• RAK4631 Meshtastic Quick Start Guide
• Meshtastic Installation and Usage Guide

Questions about miners, antennas, and cables? Visit this page to learn more.

RAK LILYGO Heltec & Developer Board Warranty Policy – Rokland

Warranty & Support:

1-year limited manufacturers warranty- click for more details

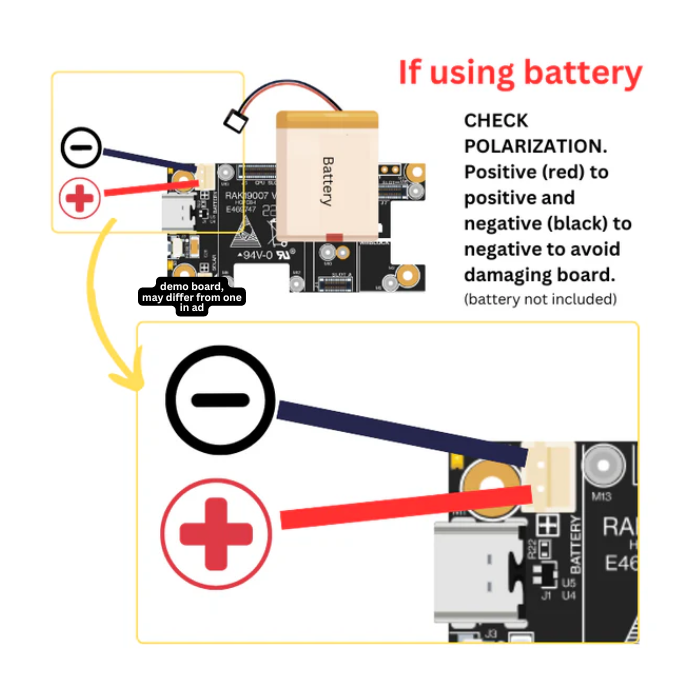

Battery connector defects are not covered if using a battery not sourced from Rokland. We have encountered problems and polarity issues with cheaper batteries and suggest contacting your battery manufacturer if your battery sourced elsewhere damages the battery connector.
