LILYGO® T-Deck Portable Microcontroller Programmer LoRa 915 MHz H642

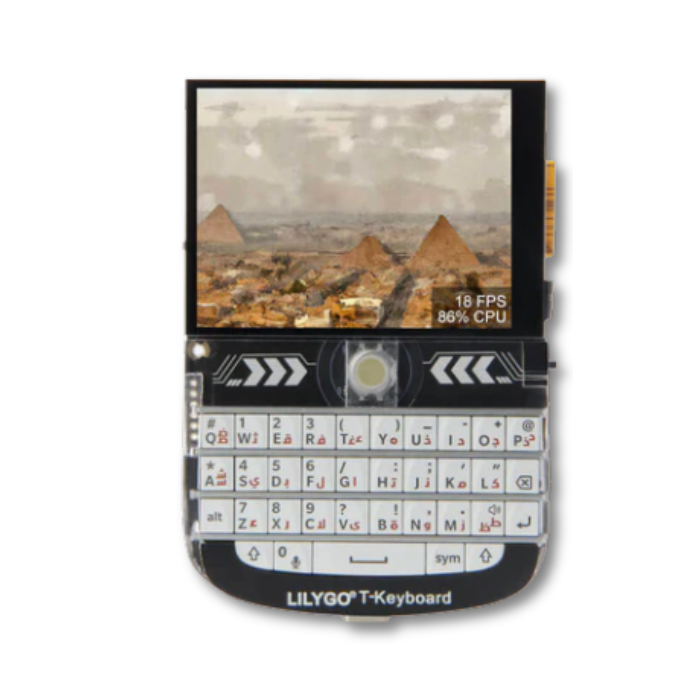

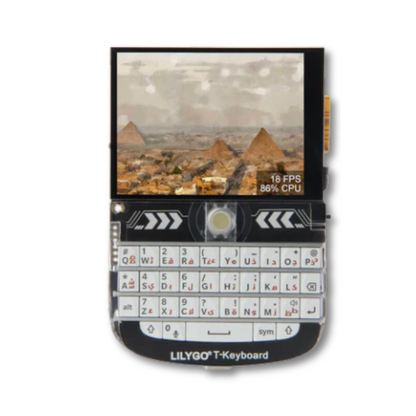

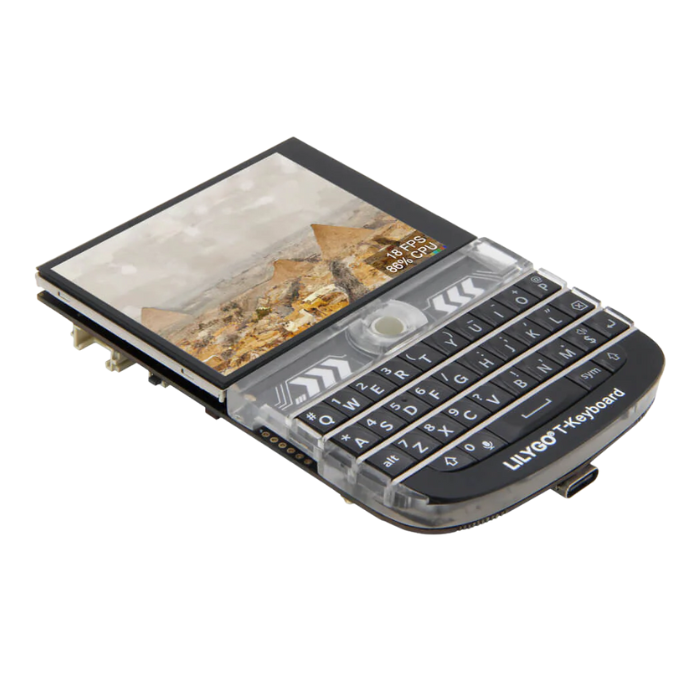

T-Deck is a pocket-sized gadget with a 2.8-inch, 320 x 240 pixel IPS LCD display, a mini keyboard, and an ESP32 dual-core processor. It is not a smartphone, though it looks like one- but you can use your programming knowledge to turn it into a standalone messaging device, or use with coding software for programming.

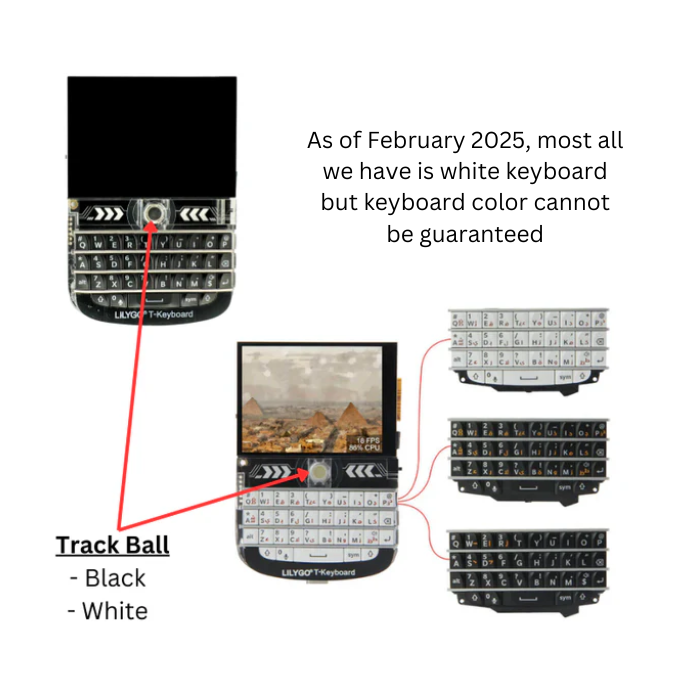

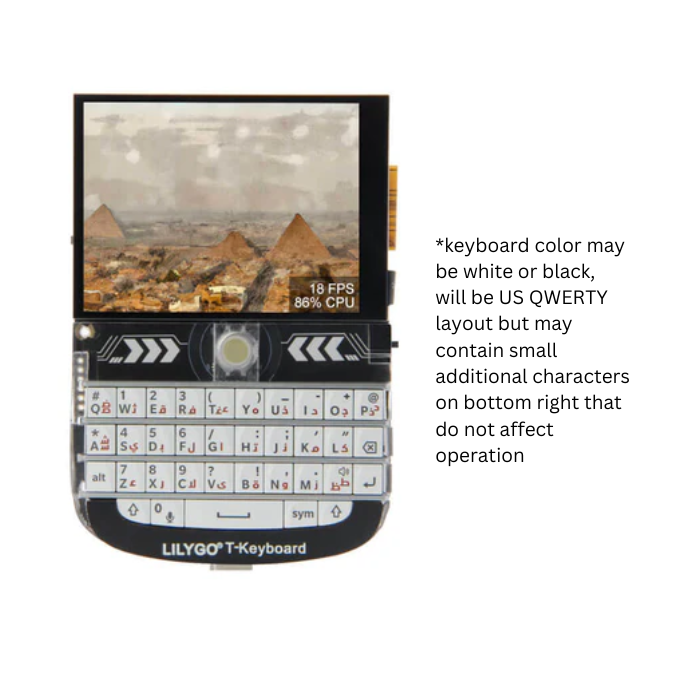

Keyboard appearance may vary from photos: US QWERTY layout guaranteed, may have additional symbols or characters on keys in other language in addition to QWERTY but that is smaller print on the bottom of the key and would not affect operation or layout. As of 1/28/25 most all keyboards we have are white color but it is possible a black keyboard is still shipped.

Base vs. Complete vs. Plus Models





At the top of the page you can select the Base model, the "Complete", or the "Plus"

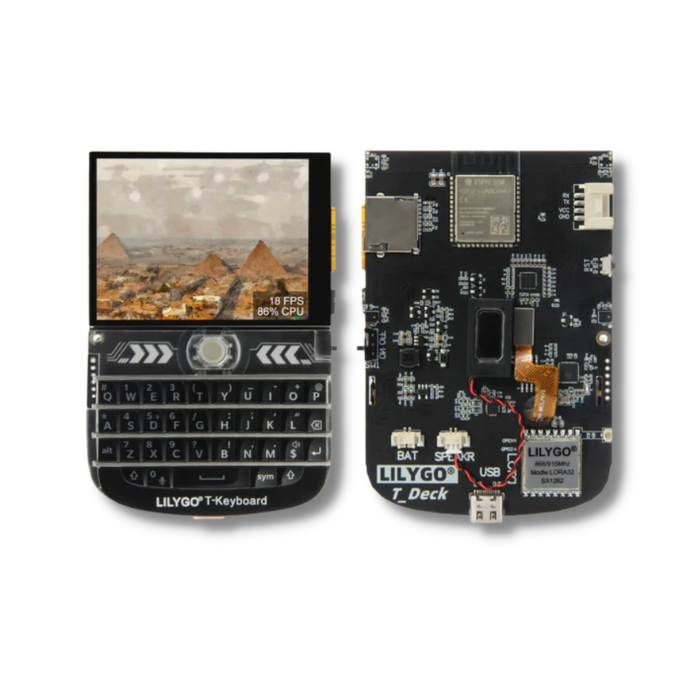

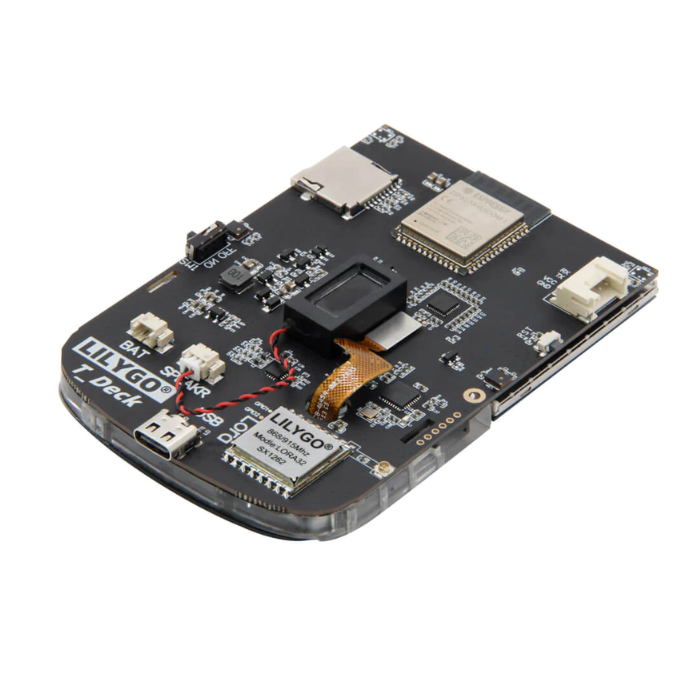

Base model is the classic open T-Deck without case, battery, or GPS.

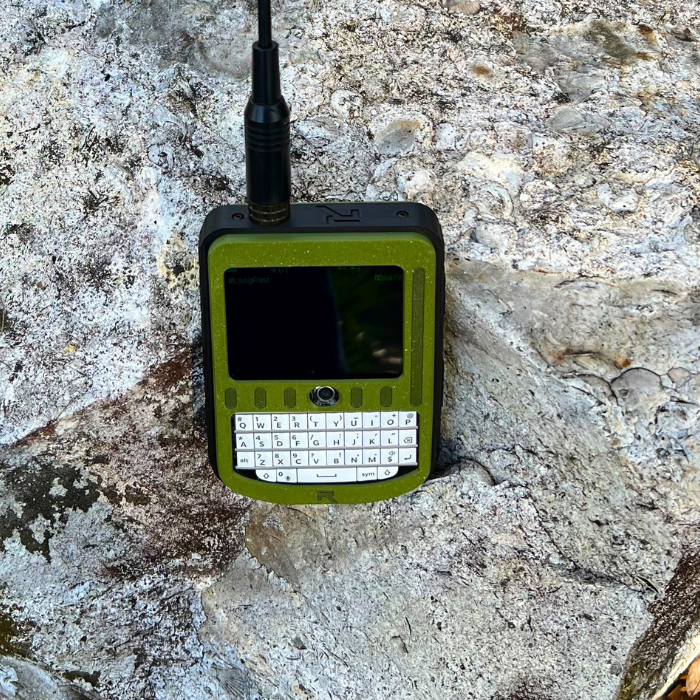

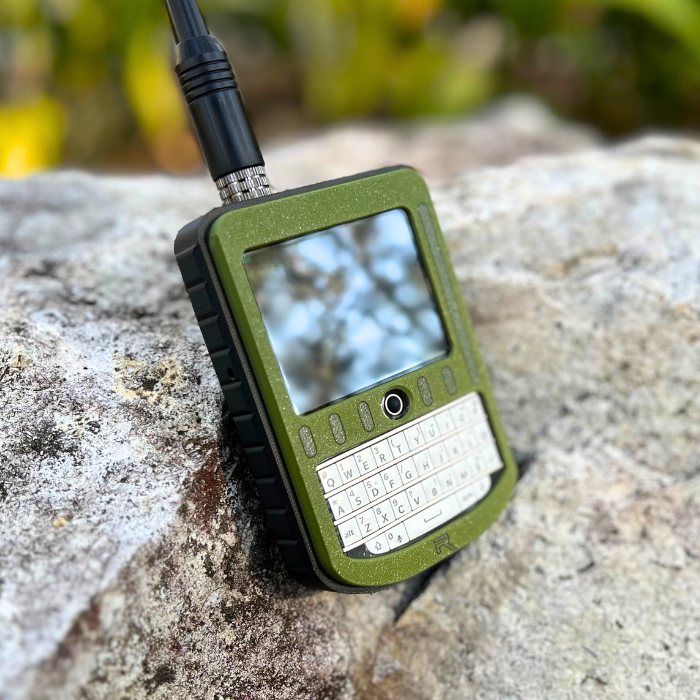

Complete model is assembled by Rokland (this is not the T-Deck Plus from LILYGO) and includes:

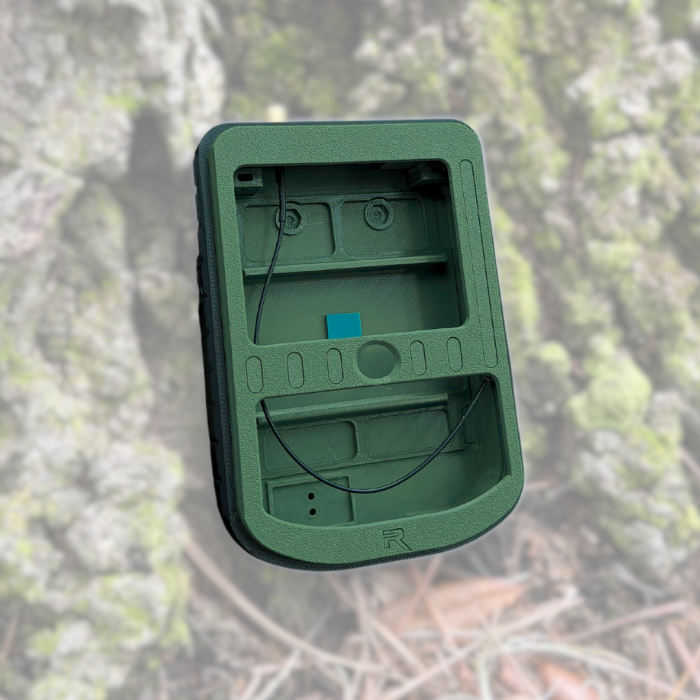

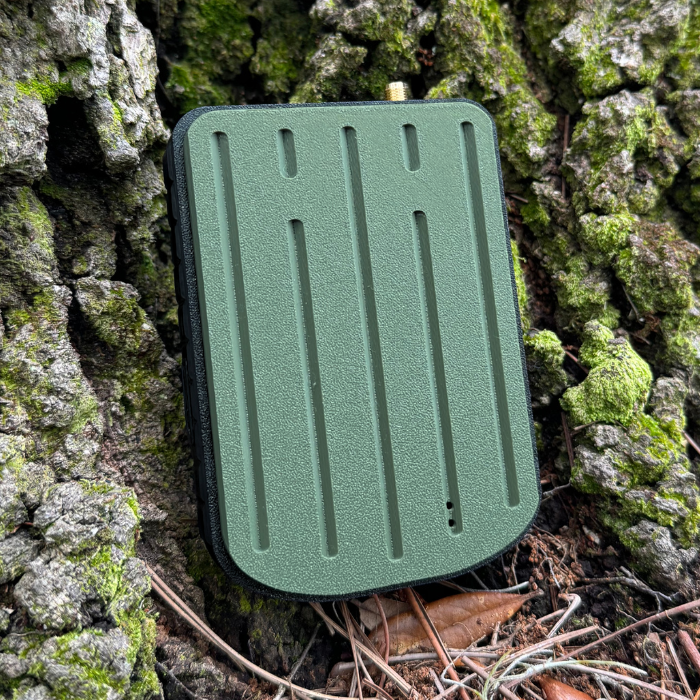

• Military green case created by QuantumShadow3D
• 3000 mAh battery
• External LoRa connector with Rokland 2.5 dBi 20cm whip antenna
• Internal GPS via Grove Connector

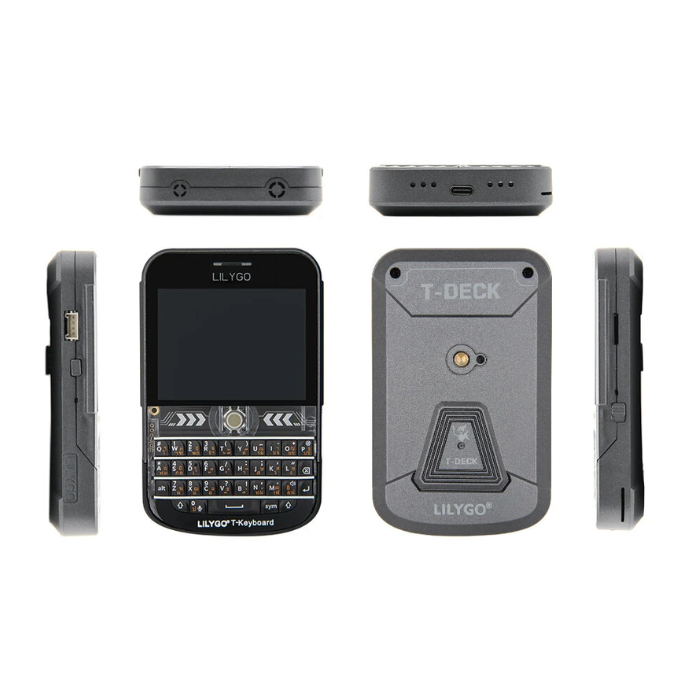

T-Deck Plus is fully assembled by LILYGO and includes

• Basic case- no external antenna hookup, only internal antenna
• 2000 mAh battery

• Internal GPS

See pictures for differences

Already own a T-Deck Base and just need accessories?

Click for compatible batteries
Click for compatible cases
Click for compatible GPS

Meshtastic Firmware:

Both base and complete units ship with a recent version of Meshtastic firmware preinstalled. If you wish to update:

• Web installer
• Select your device: T Deck
• Select firmware version: latest beta
• Select update or reinstall: wipe and reinstall device
• Hold down trackball, then power on the device with the toggle switch
• Keep holding trackball, click connect in web installer

• Select T Deck's USB serial port
• Click install T Deck, then install, release trackball when erasing appears
• Other Flashing Methods

Specifications

Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-Deck

Pin Diagram

Without LoRa

• 1 X T-Deck
• 1 X Pin(6pin)
• 1 X Power cable

With LoRa

RAK LILYGO Heltec & Developer Board Warranty Policy – Rokland

Dev Board Return Policy

Development boards are specialty items that generally cannot be resold on return, especially if the firmware has been flashed. Defective boards can be replaced or returned for refund within 30 days of purchase. Non-defective boards can be returned in the same time frame if in like-new condition with a 20 percent restocking fee applied. If the board has had altered firmware or became bricked due to a non-standard firmware flash, the board may not be eligible for return.

Sales tax is required in many states and will be added at checkout if applicable to your delivery state. Tax exempt forms can be sent to our support department.
